- 10Hz-10MHz usable bandwidth Low loss design
- Easily measure varactors, junction capacitance
- Measure X5R capacitor voltage sensitivity
- Bias low power transistor amplifiers and diodes for parameter extraction
Product Information
When using the network analyzer to measure impedance, such as the capacitance and ESR or a capacitor, or the DCR of an inductor, etc., it is often necessary to provide a voltage bias to the device being tested. This is true of semiconductor junction capacitances, varactors, and some ceramic capacitors (especially X5R). In these cases the impedance is a function of the DC bias on the device. The Picotest DC bias injector (J2130A) is used for this purpose during impedance measurements.
Detailed Specifications

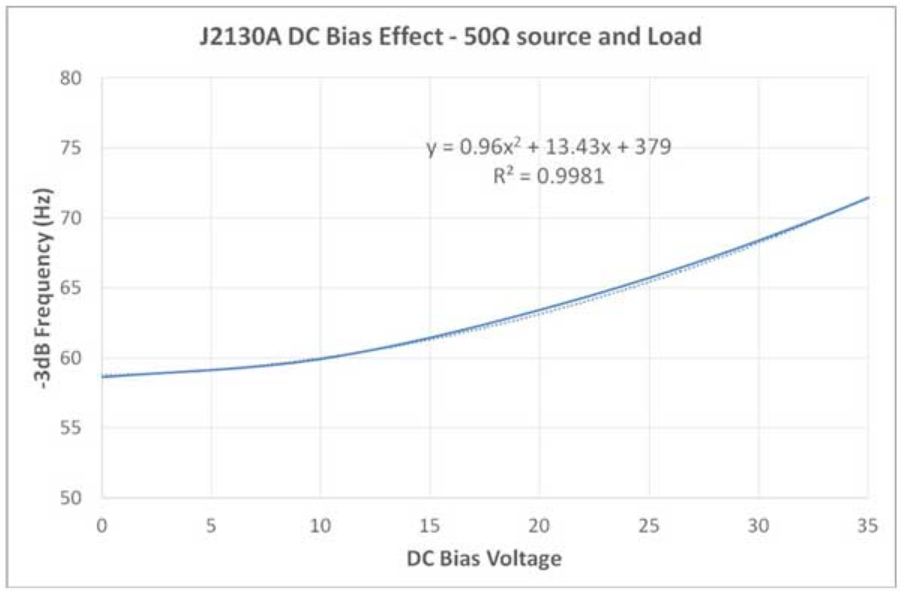

| Specifications | |
| Characteristic | Typical |
| Maximum DC Bias | 50VDC |
| Bias Resistance | 10kOhms |
| Maximum Bias Current | 5mA At 50V |
| Frequency Response |
15Hz ~ 40MHz Frequency Sweep 10Hz~500MHz,Power=-10dBm |
| Temperature Range | 0 ~ 50°C |
| Maximum Altitude | 6000Ft |
| Absolute Maximum Input-Output Voltage | 50V Differential |
| Absolute Maximum Voltage | <50 VAC and 75VDC |
Caution:To avoid equipment damage and/or severe injuries or death ensure that the absolute maximum ratings are observed and not exceeded at all times.
