Product Features
- J2161A/J2102B enables Gold-Standard 2-port shunt-through Power Distribution Network Impedance measurement on oscilloscopes
- 100Hz – 500MHz typical measurement bandwidth, Impedances down to 1mohm
- Works with oscilloscopes – Tektronix Series 5/6 with FRA features (requires 5-PWR or 6-PWR software), Rohde & Schwarz, Keysight, Siglent, etc
Product Information
Now you can perform the “Gold Standard” PDN measurement on the Tektronix Series 6 oscilloscope. The 2-port shunt-through impedance measurement is enabled by the Picotest J2161A Active Splitter, along with either a J2102B Common Mode Transformer or a J2113A Differential Amplifier (for ground loop breaking). The combination of these two injectors (splitter and transformer) allows you to measure low impedances over frequency down to 1mohm covering a bandwidth of 100Hz to over 500MHz. The bandwidth of the measurement is dependent on the scope's capabilities.
.jpg)

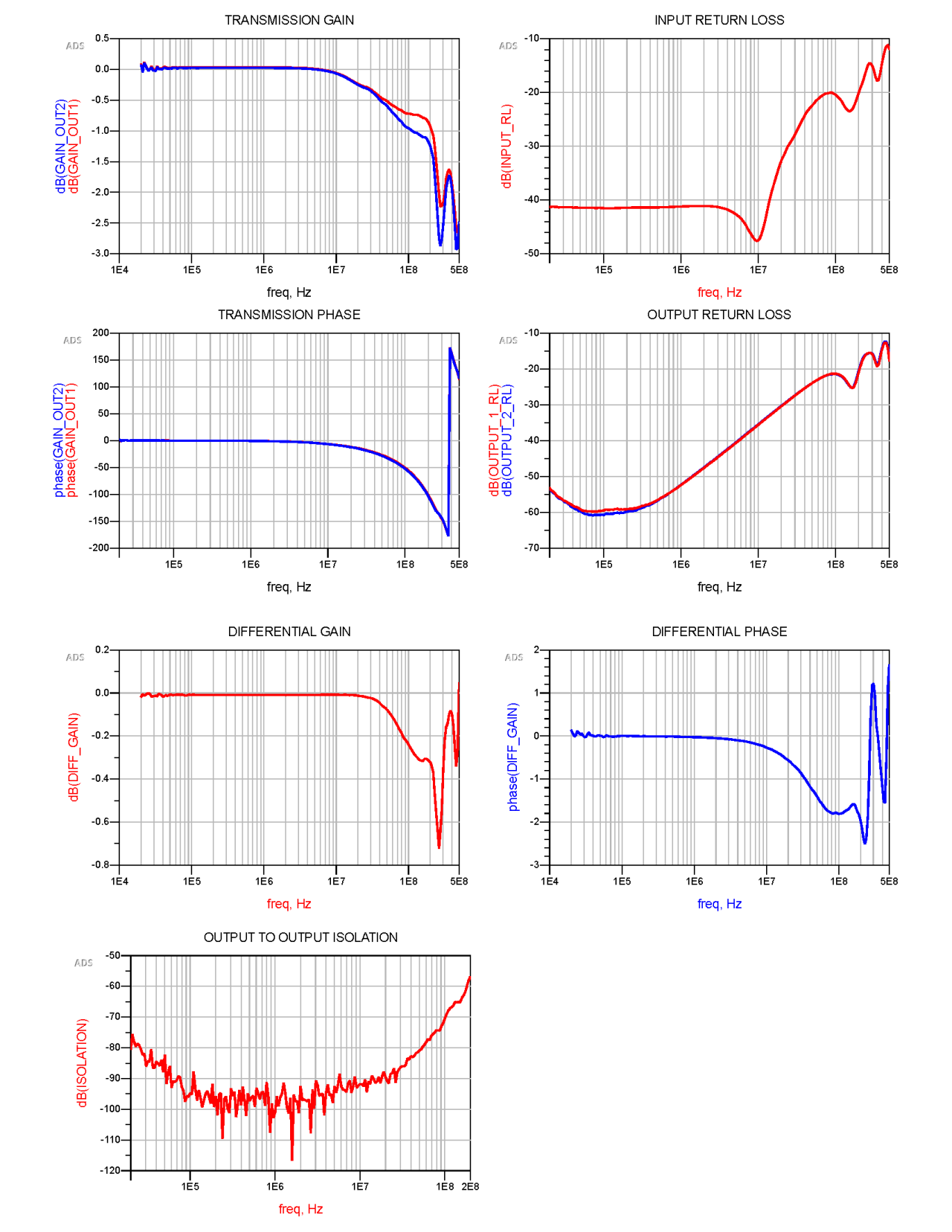

| Specifications | |
| Characteristic | Typical |
| Uncalibrated Insertion Loss | < 100MHz 1dB. >100MHz - 500MHz 3dB |
| Input Return Loss (typical) | < 100MHz < -20dB >100MHz - 500MHz 12dB |
| Output Return Loss (typical) | < 100MHz < -20dB >100MHz - 500MHz 12dB |
| Gain | 1 |
| Out to Out Isolation | >75 dB (up to 100MHz) |
| Maximum Input Voltage | 2Vpk DC+AC |
| Temperature Range | 0 ~ 50°C |
| Maximum Altitude | 6000 Ft |
| Absolute Maximum Voltage (input or output) | 2.5V pk DC+AC into 50Ohms |
Caution: To avoid equipment damage and/or severe injuries or death ensure that the absolute maximum ratings are observed and not exceeded at all times.
What’s Included
- J2161A 2-Way Wideband Active Splitter
- J2171A High PSRR Regulated Adapter
- User Manual
- 1 Year Warranty
