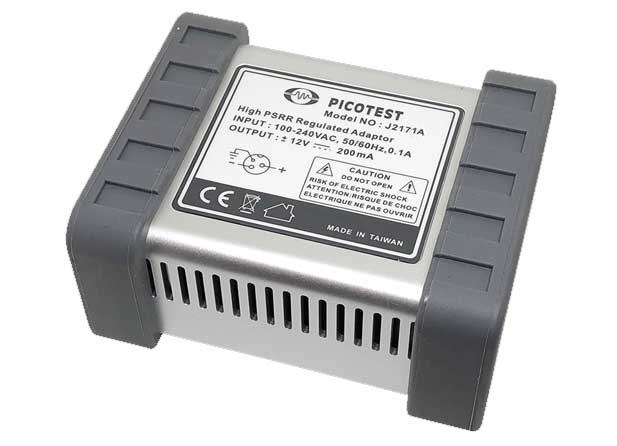

J2171A High PSRR Regulated Adapter

Please note that the J2170B has been replaced by the J2171A

• For use with the J2110A, J2111A, J2112A, J2113A, and other Picotest Injectors
• Universal AC input voltage 100V-240V for worldwide performance
• +/-12V 200mA output
• Ultra high PSRR
• Very low noise
• Very low output impedance

Product Information

The supply combines a universal worldwide input (100 to 240 VAC ) with two high performance linear regulators.

While there are many off-the-shelf power supplies available that can provide a universal input voltage and 12V output voltage, they do not provide the same performance as the J2171A. Most switching regulators produce significant ripple at and above 100kHz. This ripple passes through the PSRR of the internal opamps, reducing the noise floor. While this may work in many applications, it is less than ideal. Typical switching power supplies and even typical linear regulators have a high output impedance at 40MHz, due to the ESL of the output capacitors and the nature of the control loop.

The J2171A uses a discrete design approach, offering very low output impedance, stable performance with large ceramic decoupling capacitors and ultra high PSRR compared with typical off-the-shelf devices. To maintain a good noise floor for various measurements, the power supply must have very low noise.

Detailed Specificaltions

Caution: To avoid equipment damage and/or severe injuries or death ensure that the absolute maximum ratings are observed and not exceeded at all times.
